Style 9610


Gasket Cutter Set 36"
Complete gasket cutting set enables accurate cutting from 1/4" up to 36" diameter. Will cut all gasket materials including compressed sheet, cork, rubber, PTFE, etc. The standard set includes a padded cutting board 18" x 18" and the tools listed below. Heavy duty blades, cutting pads and boards 24" x 24" or 30" x 30" are available as optional extras.

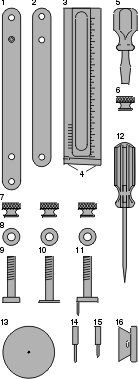

1.     Extension Bar (over 24")
2.     Extension Bar (12" to 24")
3.     Cutter Block & Head
4.     Cutter Head Screw Locations
5.     Screw Driver
6.     Thumb Nut for Fig. 1
7.     Thumb Nuts
8.     Fibre Washers
9.     Pivot Post
10.   Pivot Post for Extension Bars
11.   Post with Offset Pin
12.   Piercing Tool
13.   Cutting Knob
14.   Long Center Pin
15.   Short Center Pin
16.   Cutting Blades (6 per pkg.)
